FLAT PRODUCTS

DANA Steel Industry LLC (www.danasteel.com) has it’s state of the art Cold Rolling Mill Complex ( CRM Complex) Situated in DIC,Dubai Industrial City Park (Strategically Situated just 35 kms Jebel Ali Sea Port) from and it’s Marketing Head Quarters in Dubai (Situated 4 kms from Dubai International Airport).Our Products are Proudly “MADE IN UAE” and exported to GCC(Gulf Cooperation Council) Countries,Middle East,Africa,America and Europe.

dana steel uae gi ppgi ppal exporter manufacturer in dubai UAE

Our CRM Complex in Dubai Industrial City is fully Equipped with State of the art Equipment :–>

  • Continuous Galvanizing / Aluzinc Line [CGL] :- DANA Steel UAE is the having the Only Continuous Galvanizing Line in the Middle East having Dual Pot Technology Enabling it to Manufacture Galvanized and Aluzinc Coils in the Same Production Line.Our Line is Also equipped with the Latest Vertical NOF(Non-Ox Furnace) Technology to achieve online annealing and tempering to manufacture galvanized coils in Commercial,Lock Forming Quality LFQ,Structural Grades.Also Featured in our continuous manufacturing line is SKIN PASS MILL(SPM) and TENSION LEVELLER(TL) in order to give super-flat end-products which can be used for various high precision applications like home appliances, color coating, automobile body building sector. Our Installed Production Capacity is 250,000 Mt/annum.Continuous Galvanizing Line Production UAE
  • The products manufactured by our CGL are :-
    * Hot Dipped Galvanized(GI) coils as per ASTM A653/JIS G3302/DX 51+D Standards chromated/non-chromated unoiled/oiled commercial/lock forming/structural qualities with regular/minimized/zero spangle.
  • gi galvanized steel coils export supplier
    * Aluzinc(AZ) Coils as per ASTM A792 Standards with antifinger coating and commercial/lock forming/structural qualities with minimized spangle.
  • Continuous Color Coating Line [CCL] :- DANA Steel UAE is having the Only Continuous Color Coating Line in the Middle East having the Latest Korean Hot Lamination technology for producing Color Coated Galvanized & Aluminum Coils with various patterns for precision end usage in construction and home appliances .Coil coating is a continuous online process for coating metal before fabrication into end products. The steel or aluminum substrate is delivered in coil form. The coil is positioned at the beginning of the coating line, and in one continuous online process, the coil is uncoiled, pre-cleaned, pre-treated, primer coated, baked and finally color coated and rebaked before being recoiled on the other end and packaged for shipment.Our Installed Production Capacity is 150,000 Mt/annum
  • color coating line process layout uae dubai manufacturer
  • The products manufactured by our CCL are :-
    * Prepainted Galvanized(PPGI) coils with Coating as per ASTM A755/A755M and base material per ASTM A653/JIS G3312/DX 51+D Standards
  • * Prepainted Aluzinc(PPAZ) Coils with Coating as per ASTM A755/A755M and base material as per ASTM A792 Standards
    * Prepainted Aluminum(PPAL) Coils with Coating as per ASTM A755/A755M and base material as per Aluminum Alloys like A3105 A1100 A3003 A3004 A5005 A5052 A5754 or as per request
  • ppgi ppal coil supplier manufacturer dana steel uae
  • Besides the Above products manufactured in our manufacturing Facility our Distribution and Service Centers are also Stocking the below products for just in time deliveries :-

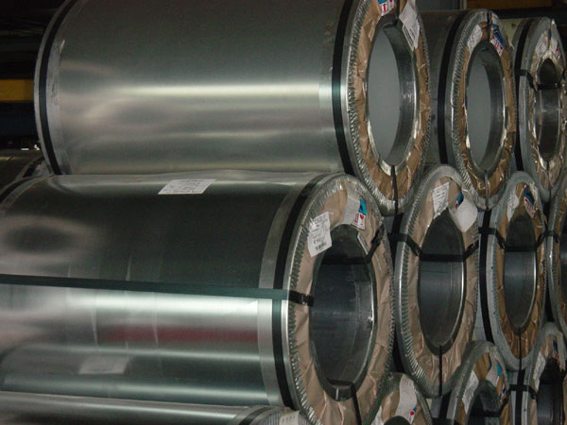

    Hot Dipped Galvanized Coils

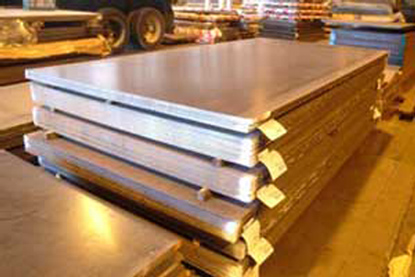

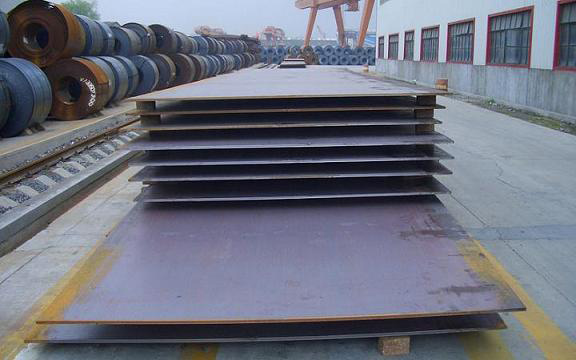

    Hot Rolled Steel Plates

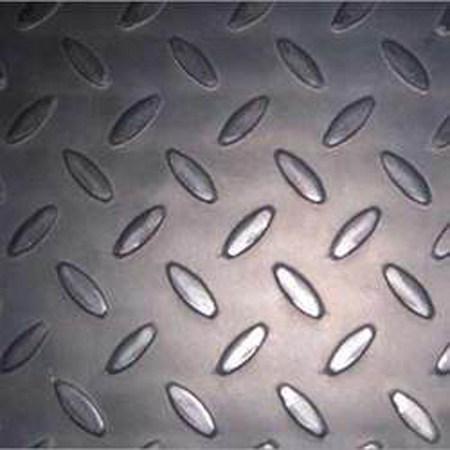

    Chequered Hot Rolled Coils

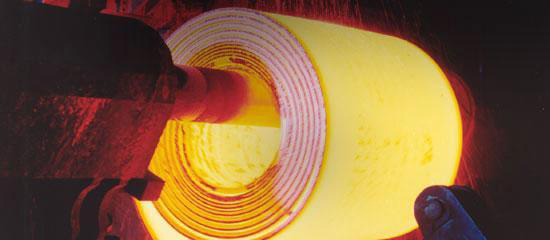

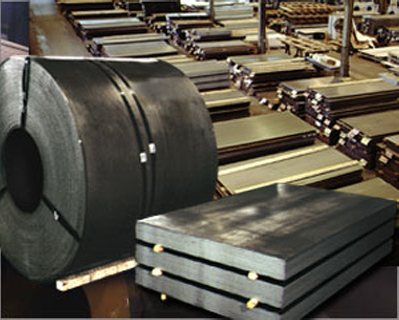

    Hot Rolled Coils

    Hot Rolled Sheets

    Hot Rolled Shipbuilding Plates (LR; ABS; DNV; BV)

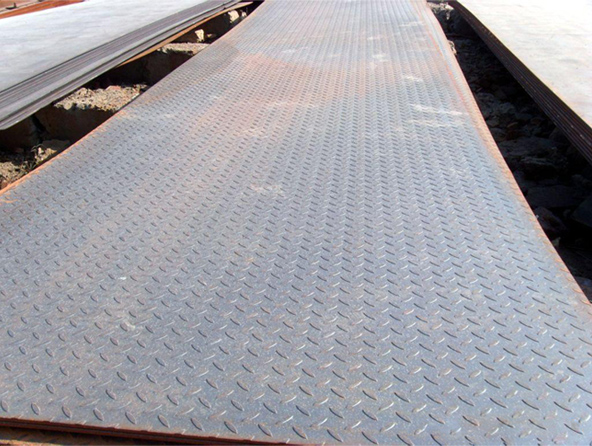

    Chequered Hot Rolled Sheets

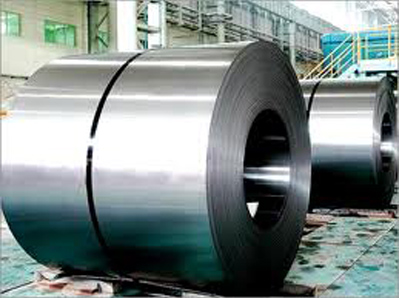

    Cold Rolled Coils

    Cold Rolled Sheets

    COMPARITIVE CHART OF EQUIVALENT STANDARDS FOR HOT ROLLED STEEL

    INTERNATIONAL STANDARDS & SPECIFICATIONS

    • Hot Rolled Steel Plate:- JIS G3101 SS330/ SS400/ SS490/ SS540
    • JIS G3106 SM400A/ SM400B/ SM400C/ SM490A/ SM490C/ SM490YA/ SM490YB/ SM520B/ SM520C / SM570
    • JIS G3113 SAPH310/ SAPH400/ SAPH440
    • JIS G3134 SPFH490/ SPFH540/ SPFH590
    • ASTM A36 / A709 GR-36.50.50W /A242 /A283 GR-A~D /A285A~C / A515 GR-60.65.70 / A516 GR-55.60.65.70 / A537 CLASS-1 / A572 GR-42.50.60.65 / A573 GR-65.70 / A588 / A 841-C1.2

    Hot Rolled Steel:

    • JIS G3101 SS330/ SS400/ SS490/ SS540
    • JIS G3106 SM400A/ SM400B/ SM400C/ SM490A/ SM490C/ SM490YA/ SM490YB
    • JIS G3113 SAPH310/ SAPH370/ SAPH400/ SAPH440
    • JIS G3134 SPFH490/ SPFH540/ SPFH590
    • JIS G3114 SMA400A
    • JIS G3116 SG255/ SG295
    • JIS G3125 SPA-H
    • JIS G3131 SPHC/ SPHD/ SPHE
    • JIS G3132 SPHT1/ SPHT2/ SPHT3/ SPHT4
    • JIS G3303 SPB
    • JIS G3444 STK540
    • JIS G4051 S35C~S41C/ S42C~S54C/ S55C~S65C/ S70C~S84C
    • JIS G4053 SCM415/ SCM420/ SCM435/ SCM440
    • JIS G4401 SK85
    • ASTM A36/ A214/ A283/ A569/ A570/ A1011 CLASS 1 & 2 / A1018 A131 GR.A
    • JFS JSH 271C ( SP221 ) / 270D / 590R
    • SAE / AISI SAE 1006 / SAE 1008~1065 / SAE1070~1084 / SAE 4130 SAE J1392 050 & 060 XLF / SAE WMPS-001 1010AK SAE 1508 ~ 1560
    • CSC SCR-TEN A/AF / SCR-TEN2 / 50BV30 / HM-690T

    Hot-dip zinc-coated steel:-

    • JIS G3302 SGHC SGCC SGCD1 SGCD2 SGCD3 EDDQ SGC340(35) SGC400(40) SGC440(50) SGC490(55)
    • JFS A3011 JAC270C JAC270D JAC270E JAC270F JAC340P JAC370P JAC390P JAC440P JAC340H JAC340W JAC390W JAC440W JAC440R
    • ASTM A653 CS TYPE A B C FS TYPE A B DDS EDDS SS230(33) SS255(37) SS275(40) SS340(50) CLASS 1&2 SS340(50) CLASS 3

    Cold Rolled Steel:

    • JIS G3141 SPCC SPCD SPCE SPCEN SL250Y SL370Y SL420Y
    • JIS G3135 SPFC340 SPFC370 SPFC390 SPFC440 SPFC490 SPFC540 SPFC590
    • JIS G3311 S35CM S45CM S50CM
    • ASTM A684 1065, SK85M
    • JIS G3133 SPP
    • CSC CF340R CF370R CF390R CF440R CF490R CF490R CF590R HS840
    • SAE SAE1012 SAE1017 SAE4130 SAE4135 SCM415 SCM435 SCM440

    DANA is also a leading supplier/stockist of various other flat steel products including aluminum and stainless steel coils/sheets in the United Arab Emirates(UAE).With 4 dedicated coil service centers & distribution centers( cut-to-length & slitting lines) in Dubai & Ajman it is fully equipped for just-in-time deliveries.We are exporting processed sheets/coils & slits to Qatar(Doha),Oman(Muscat,Seeb,Sohar),Bahrain(Manama),Saudi Arabia(Jeddah,Yanbu,Dammam,Riyadh) and various other African,American,European & Middle eastern destinations.

    DOWNLOAD Hot Dip Galvanized[HDGI] Coils Technical Specfications

    DOWNLOAD Prepainted Galvanized[PPGI] Coils Technical Specfications

    DOWNLOAD Galvalume/Aluzinc[AZ] Coils Technical Specfications

    Download PDF
