DANA GLASSHOT

DANA GLasshot picture STANDARD FEATURES:-
  • INNER TANK :- The inner tank of DANA GLASSHOT is 2-piece circular welded & is Vireous Enamelled to provide ultimate protection against corrosion.

  • INSULATION:- The thick CFC-free Polyurethane foam insulation helps in excellent heat retention and economical electrical consumption.

  • HEATING ELEMENT :- Superior Quality Italian element(screw-type) which is ergonomicaly designed for efficient heating and cutting down electricity costs.

  • THERMOSTAT:- Plug-in type auto-cutoff thermostat which ensures optimal temperature maintainance.

  • MAGNESIUM ANODE:- Specially designed thick Magnesium alloy anode ensures maximum protection from corrosion.

  • OUTER BODY :- The Outer Body of DANA GLASSHOT is made up of high quality steel with high gloss epoxy polyester electrostatic powder coating to provide effective protection against corrosion in varied climatic conditions.

  • SPLASH-GUARD TECHNOLOGY :- Directs incoming cold water to the bottom of the boiler,thereby eiminating the mixture of hot and cold water.This mechanism ensures continous supply of hot water at all times.

  • SAFETY VALVE :- Twin function non-return cum safety valve which maintains pressure inside boilder,hence prevents expansion of inner boiler tank,in event of thermostat failure.The non-return function helps to retain water inside the tank inorder to prevent damage to the heating element

    • TECHNICAL SPECIFICATIONS:-
    MODEL:- DANA GLASSHOT
    Capacity 12 Glns/20 Glns
    Mounting Vertical/Horizontal
    Outer Body Superior Quality Steel with Electrostatic Powder Coating
    Inner Boiler 2 Piece Steel Tank with Vitreous Enameling
    Insulation High Density Polyurethane foam
    Element Long-Lasting specially designed Italian element
    Power Specifications Rated Voltage 220-240V/50 Hz-1200Watts
    Thermostat Adjustable 30°C-90°C Rating-15Amp/73°C
    Magnesium Anode Included
    Color Brilliant White(Other colors available on request)
    Testing Pressure 12 Bar
    Max. Working pressure 8 Bar
    Safety Valve Included
    Operation(Pilot)Lamp Present
    External Thermometer Present
    Earthing Connection Present
    Warranty Against leakage 5yrs
  • Warranty-Each water heater is warranted against manufacturing defects & tank leakages.For detailed warranty terms & conditions refer to our "Warranty Certificate".
  • Other storage capacities can be manufactured on client request.
  • Keeping in pace with rapid technological developments the technical specifications are liable to change without prior notice.
  • All water heaters are supplied with User/Installation instructions and warranty card.
  • All Heating element & thermostat comply with International Standards.


    • Click here for PDF file showing why DANA WATER HEATERS- THE HOT CHOICE Get Adobe Reader

    PICTURES

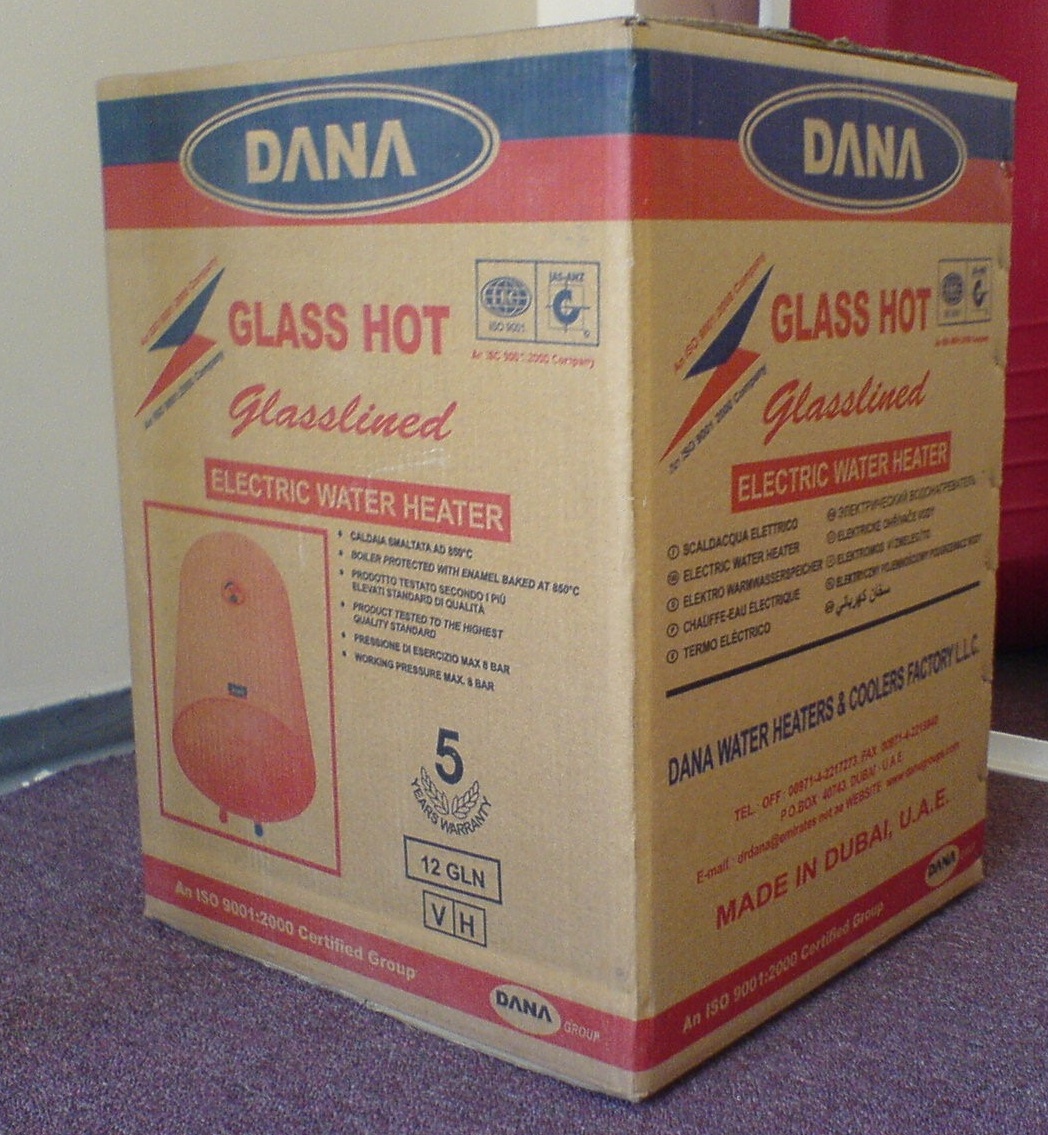

    DANA GLASSHOT CARTON DESIGN DANA GLASSHOT PICTURE
    CARTON DESIGN DANA GLASSHOT

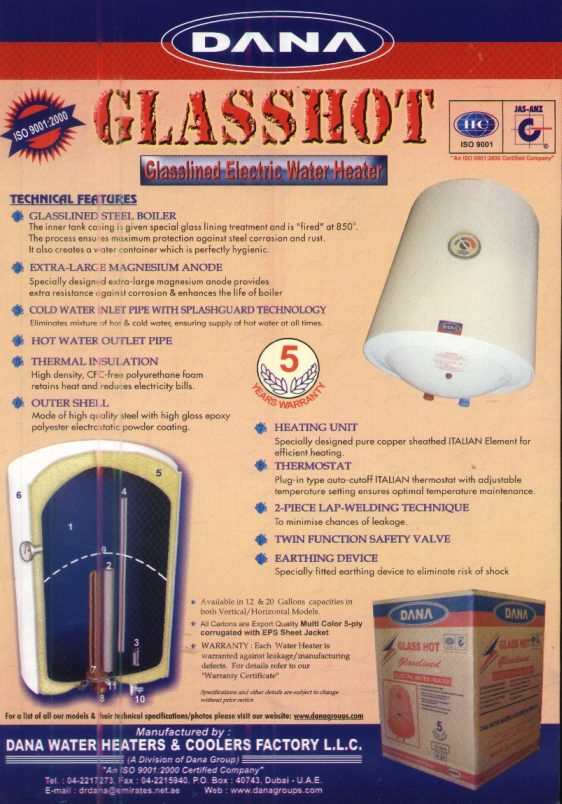

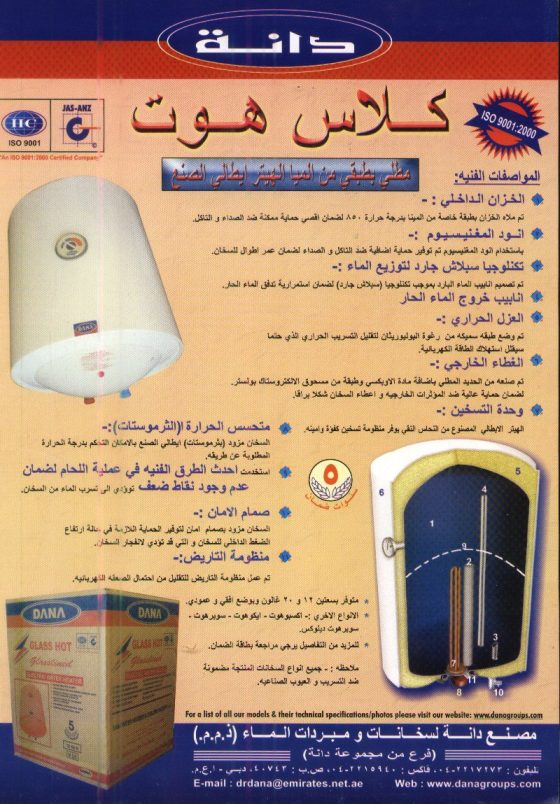

    DANA GLASSHOT CATALOG ENGLISH DANA GLASSHOT CATALOG ARABIC
    CATALOG ENGLISH CATALOG ARABIC
