DANA ECOHOT

STANDARD FEATURES:-
  • INNER TANK :- The inner tank of DANA ECOHOT is is 2-piece circular welded & is made up of made of heavy gauge hot dipped GI sheet with thicker zinc coating for long lasting life.

  • INSULATION:- Thick high density Glasswool is packed all around the inner tank for excellent heat retention and economical electrical consumption.

  • HEATING ELEMENT :- Superior Quality Italian element(screw-type) which is ergonomicaly designed for efficient heating and cutting down electricity costs.

  • THERMOSTAT:- Plug-in type auto-cutoff thermostat which ensures optimal temperature maintainance.

  • OUTER BODY :- The Outer Body of DANA ECOHOT is made up of high quality steel with high gloss epoxy polyester electrostatic powder coating to provide effective protection against corrosion in varied climatic conditions.

  • SPLASH-GUARD TECHNOLOGY :- Directs incoming cold water to the bottom of the boiler,thereby eiminating the mixture of hot and cold water.This mechanism ensures continous supply of hot water at all times.

    • TECHNICAL SPECIFICATIONS:-
    MODEL:- DANA ECOHOT
    Capacity 12 Glns/16 Glns
    Mounting Vertical/Horizontal
    Outer Body Superior Quality Steel with Electrostatic Powder Coating
    Inner Boiler 2 Piece GI Tank with Circular Welding
    Insulation Thick Glass wool
    Element Italian type
    Power Specifications Rated Voltage 220-240V/50 Hz-1200Watts
    Thermostat Adjustable 30°C-90°C Rating-15Amp/73°C
    Magnesium Anode Not Included
    Color Brilliant White(Other colors available on request)
    Testing Pressure 12 Bar
    Max. Working pressure 8 Bar
    Safety Valve Not Included
    Operation(Pilot)Lamp Present
    External Thermometer Present
    Earthing Connection Present
    Warranty Against leakage 1yr
  • Non-return cum Safety valve to be ordered extra.
  • Warranty-Each water heater is warranted against manufacturing defects & tank leakages.For detailed warranty terms & conditions refer to our "Warranty Certificate".
  • Other storage capacities can be manufactured on client request.
  • Keeping in pace with rapid technological developments the technical specifications are liable to change without prior notice.
  • All water heaters are supplied with User/Installation instructions and warranty card.
  • All Heating element & thermostat comply with International Standards.


    • Click here for PDF file showing why DANA WATER HEATERS- THE HOT CHOICE Get Adobe Reader

    PICTURES

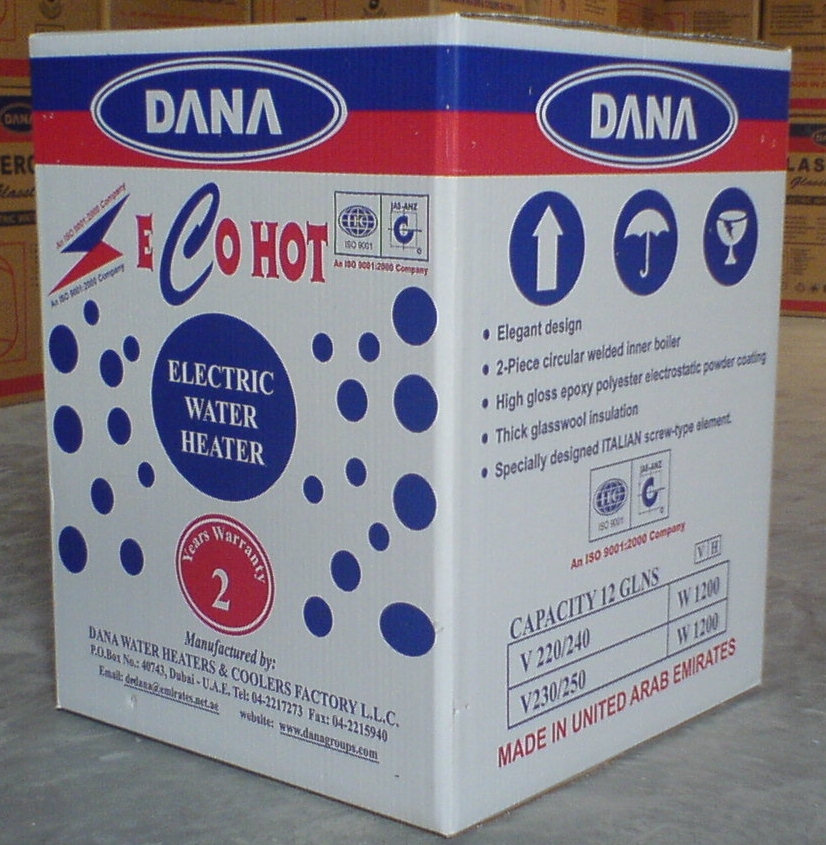

    DANA ECOHOT CARTON DESIGN DANA ECOHOT PICTURE
    CARTON DESIGN DANA ECOHOT

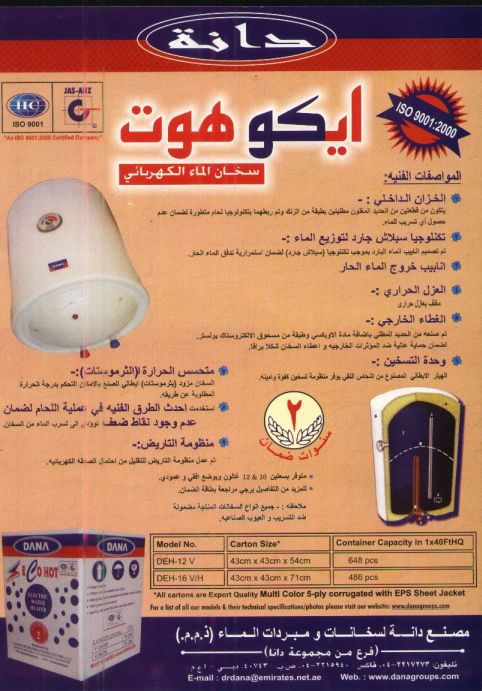

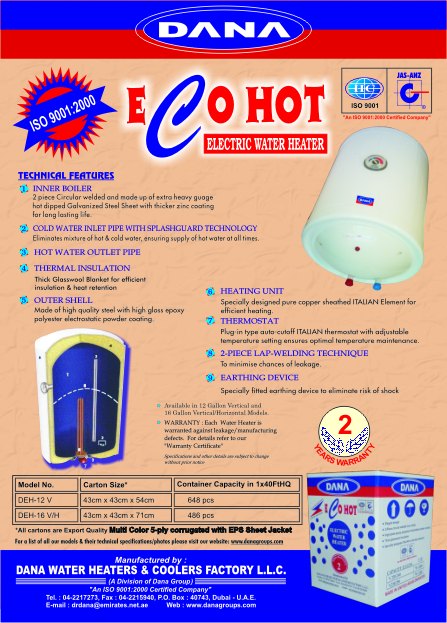

    BROCHURE ENGLISH BROCHURE ARABIC
