DANA WATER COOLERS & WATER CHILLERS

"DANA" remains committed to producing top-quality water coolers,water chillers(indoor & outdoor),heat pumps(water heater-cum-chiller) .With various models and premium features, there is sure to be an "DANA" water cooler perfectly suited to your needs.A team of professionally skilled workforce ensures the highest standards of quality for the global market. Delivery schedules are promptly executed to meet market deadlines and International Standards.Our products are exported to Qatar,Bahrain,Oman,Kuwait,Saudi Arabia,Kenya,Jordan,Yemen,Libya & vast number of other Arab Countries.

Browse :- DANA WATER COOLERS DANA WATER CHILLERS DANA HEAT PUMPS

PRODUCT CATALOGUE

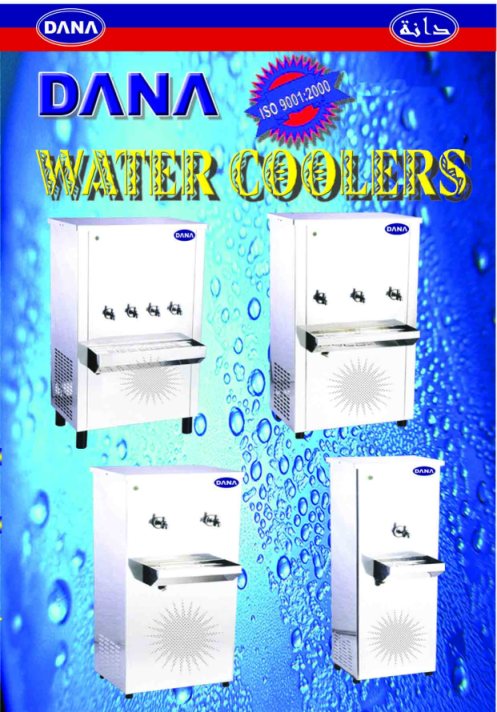

WATER COOLERS

**KEY FEATURES**

CONDENSING UNIT

Heavy duty, Noiseless, designed for extreme desert conditions. Specially designed for countries with hot climates.Peak cooling capacity is taken at desert ambient 45° c rated conditions to get chilled water at + 12° c to + 5° c.

INNER TANK

Fabricated hygienically with stainless steel 304GR fitted with leak proof hygienic attachments. The inner tank and outer body is insulated under pressure with CFC free polyurethane foam 5o mm thick.

DRIP TRAY

High quality & maintenance free drip proof taps are provided with splash proof grating on the drip tray to get a continuous fresh flow of water.

MODEL:- DANA DWC-20F1
Cooling Capacity	20 US GALS.
Storage Capacity	05 US GALS.
No. of Taps	1
H.P.	1/5
Dimensions	1230(h)X430(w)X430(D)mm
Temperature Range	5° - 12°c
Power Specifications	220-240v 1 PHASE 50HZ

---------

MODEL:- DANA DWC 25-F2
Cooling Capacity	25 US GALS.
Storage Capacity	09 US GALS.
No. of Taps	2
H.P.	1/4
Dimensions	1230(h)X580(w)X600(D)mm
Temperature Range	5° - 12°c
Power Specifications	220-240v 1 PHASE 50HZ

---------

MODEL:- DANA DWC 35-F2
Cooling Capacity	35 US GALS.
Storage Capacity	12 US GALS.
No. of Taps	2
H.P.	1/4
Dimensions	1230(h)X630(w)X650(D)mm
Temperature Range	5° - 12°c
Power Specifications	220-240v 1 PHASE 50HZ

---------

MODEL:- DANA DWC-45F3
Cooling Capacity	45 US GALS.
Storage Capacity	15 US GALS.
No. of Taps	3
H.P.	1/4
Dimensions	1230(h)X680(w)X650(D)mm
Temperature Range	5° - 12°c
Power Specifications	220-240v 1 PHASE 50HZ

---------

MODEL:- DANA DWC-65F3
Cooling Capacity	65 US GALS.
Storage Capacity	30 US GALS.
No. of Taps	3
H.P.	3/8
Dimensions	1230(h)X770(w)X650(D)mm
Temperature Range	5° - 12°c
Power Specifications	220-240v 1 PHASE 50HZ

---------

MODEL:- DANA DWC-85F4
Cooling Capacity	85 US GALS.
Storage Capacity	40 US GALS.
No. of Taps	4
H.P.	1/2
Dimensions	1230(h)X970(w)X730(D)mm
Temperature Range	5° - 12°c
Power Specifications	220-240v 1 PHASE 50HZ

---------

MODEL:- DANA DWC-100F5
Cooling Capacity	100 US GALS.
Storage Capacity	45 US GALS.
No. of Taps	5
H.P.	3/4
Dimensions	1230(h)X1070(w)X730(D)mm
Temperature Range	5° - 12°c
Power Specifications	220-240v 1 PHASE 50HZ

---------

MODEL:- DANA DWC-150F3
Cooling Capacity	150 US GALS.
Storage Capacity	50 US GALS.
No. of Taps	3
H.P.	1
Dimensions	1330(h)X930(w)X800(D)mm
Temperature Range	5° - 12°c
Power Specifications	220-240v 1 PHASE 50HZ

---------

MODEL:- DANA DWC-250F4
Cooling Capacity	250 US GALS.
Storage Capacity	100 US GALS.
No. of Taps	4
H.P.	1.5
Dimensions	1380(h)X1330(w)X800(D)mm
Temperature Range	5° - 12°c
Power Specifications	220-240v 1 PHASE 50HZ

--------------

WATER CHILLERS

**KEY FEATURES**

MODEL:- DANA DC-2000 / DC-2500 / DC-3000
Electrical Supply	Single Phase 220V-240V
Refrigerant/Charge	R-22
Condenser	Fan Cooled Tube /Plate Type With Weather Protection
Compressor	Reciprocating Type
Compressor Power Rating	2 Tons / 2.5 Tons / 3 Tons
Water Pump Power Rating	1/2 HP
Performance - Cooling Capacity	Cools from 55°(inlet) to 25°c (outlet)
Size	560 x 560 x 590 mm

--------------

MODEL:- DANA DC-4000 / DC-5000
Electrical Supply	Three Phase 440V
Refrigerant/Charge	R-22
Condenser	Fan Cooled Tube /Plate Type With Weather Protection
Compressor	Reciprocating Type
Compressor Power Rating	4 Tons / 5 Tons
Water Pump Power Rating	1 HP
Performance - Cooling Capacity	Cools from 55°(inlet) to 25°c (outlet)
Size	56 cm x 66 cm x 102 cm

--------------

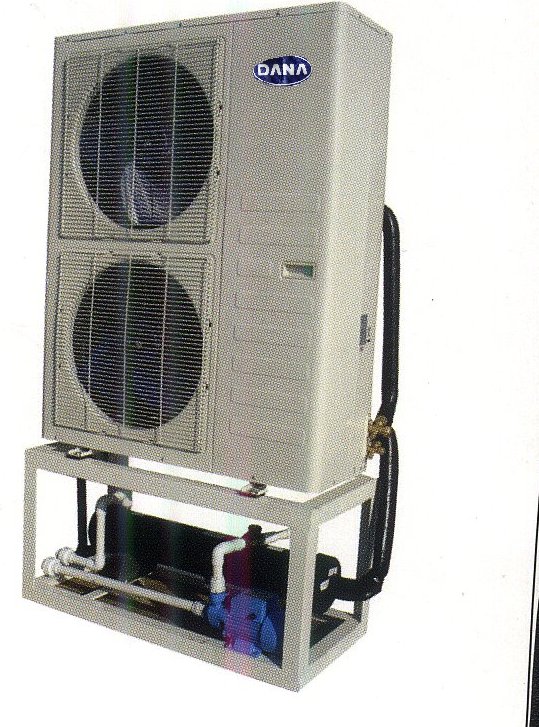

DANA HEAT PUMPS (Chiller-cum-Heater)
(Ideal for use in Swimming Pools & Laundry Machines).

MODEL:- DANA DCH-5000 // DANA DCH-2500
Electrical Supply	Three Phase 440V
Refrigerant/Charge	R-22
Condenser	Fan Cooled Tube /Plate Type With Weather Protection
Compressor	Reciprocating Type
Compressor Power Rating	5 Tons [DCH-5000] 2.5 Tons [DCH-2500]
Water Pump Power Rating	1 HP
Cooling/Heating Capacity	60,000 BTU for DCH-5000 30,000 BTU for DCH-2500
Temperature Control	10 degrees to 45 degrees celcius
Size	120 cms x 90cms x 35 cms [DCH-5000] 80 cm x 66cm x 33 cms [DCH-2500]

SWIMMING POOL SIZE-BASED RECOMMENDATION

Pool Capacity	Recommendation
40-60 m3	1 no DCH-5000
60-75 m3	1 no DCH-5000 + 1 no DCH-2500
75 - 120 m3	2 no’s DCH-5000

"We also make custom made 10 ton & 20 ton Chillers for special orders."

Capacity is in U.S Gallon,1 U.S Gallon=3.8 Ltr.

For a detailed Technical Specifications Sheet and Complete Catalogue please feel free to Contact us.

Keeping in pace with rapid technological developments all technical specifications & models are liable to change without prior notice.

---------
